Cast Acrylic vs. Extruded Acrylic: What's the Difference?
Not all acrylic sheet is made the same way, and the manufacturing process behind cast acrylic vs extruded acrylic has a real effect on clarity, machinability, and price. If you're choosing acrylic sheet for laser cutting, signage, or display work, understanding this difference will help you avoid a material that looks fine on paper but underperforms in the shop.
Quick Comparison
| Property | Cast Acrylic | Extruded Acrylic |
|---|---|---|
| Manufacturing Process | Poured between glass plates and cured individually, sheet by sheet | Continuously extruded through rollers in long runs |
| Optical Clarity | Superior clarity and consistency | Good, but can have more optical inconsistency |
| Thickness Consistency | Very consistent, tight tolerances | Less consistent across a sheet |
| Laser Cutting Results | Cuts cleaner with a glossy, flame-polished edge | Can cut rougher and is more prone to warping under heat |
| Heat Resistance | Higher heat resistance, better for machining and forming | Lower heat resistance |
| Price | Higher price point | More budget-friendly |
| Best For | Laser cutting, engraving, display, signage, high-clarity applications | Large budget-driven glazing runs where ultimate clarity isn't critical |
How Cast Acrylic Is Made

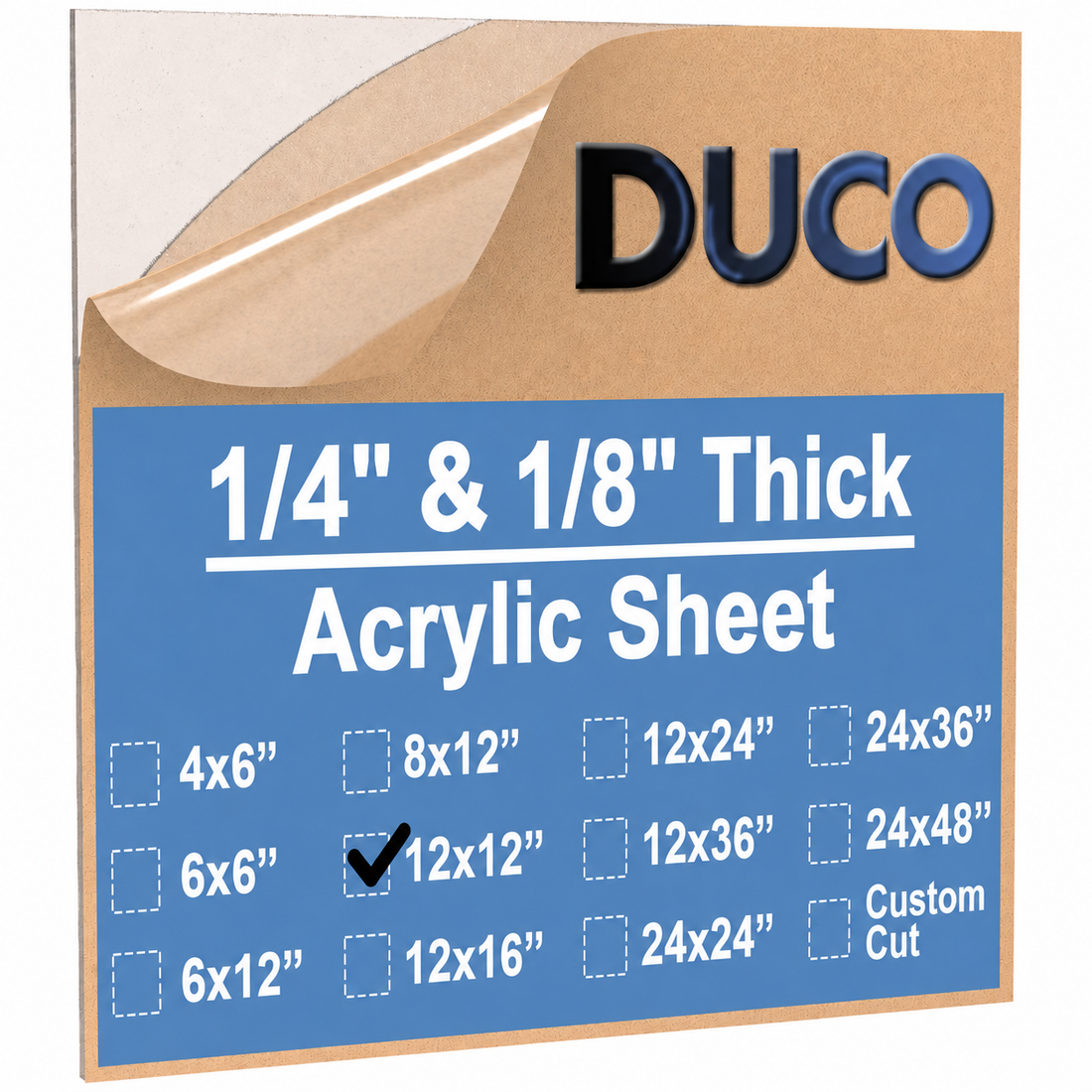

Cast acrylic sheet is produced by pouring liquid acrylic resin between two sheets of polished glass and letting it cure slowly. Each sheet is essentially made individually rather than pulled off a continuous production line, so cast acrylic tends to have superior optical clarity, more consistent thickness edge to edge, and better overall material consistency. This is the process Duco Plus uses for its flagship Clear Cast Acrylic Sheet, available in 1/8" and 1/4" thickness.
How Extruded Acrylic Differs
Extruded acrylic is manufactured by continuously pushing melted acrylic through rollers to form long, uniform sheets. This process is faster and generally more cost-effective, which is why extruded acrylic tends to run cheaper. The tradeoff is that extruded sheet can carry more internal stress, slightly less consistent thickness, and a softer surface that's more prone to scratching and warping under heat compared to cast acrylic.
Why Cast Acrylic Wins for Laser Cutting
So what's the best acrylic for laser cutting? Cast acrylic is generally the preferred choice. Its higher heat resistance means it holds up better under the concentrated heat of a laser cutter without warping, and it tends to produce a cleaner, glossier, flame-polished edge straight off the cutting bed. Extruded acrylic can cut fine for simpler jobs, but it's more prone to inconsistent edge quality and warping, especially on detailed or slow-cut designs where heat has more time to build up.
Choosing the Right Acrylic for Your Project
For projects where visual clarity, dimensional consistency, and clean edges matter, think signage, display cases, picture framing, laser-engraved products, cast acrylic is worth the higher price. If you're working on a large-scale, budget-sensitive glazing project where the acrylic won't be closely inspected or laser-finished, extruded acrylic can be a reasonable choice. Duco Plus's product line focuses on cast acrylic specifically because of its superior fabrication results.
Real-World Usage Examples
- Laser-engraved signage: Sign shops use cast acrylic sheet for laser-cut lettering and logos that need clean, glossy edges.
- Display cases and retail fixtures: Cast acrylic's superior clarity makes it the standard for showcasing merchandise under lighting.
- Custom picture framing: Framers rely on cast acrylic's optical consistency for gallery-quality glazing.
- Awards and recognition plaques: Engravers use cast acrylic because it laser-etches cleanly without clouding or melting unevenly.
- Point-of-sale displays: Retailers fabricate custom stands and holders from cast acrylic cut to size in clear, black, or white.
Frequently Asked Questions
What is the main difference between cast acrylic and extruded acrylic?
The main difference is the manufacturing process. Cast acrylic is poured and cured sheet by sheet for superior clarity and consistency, while extruded acrylic is continuously rolled, making it faster to produce but less optically consistent.
Which acrylic is best for laser cutting?
Cast acrylic is generally considered the best for laser cutting because of its higher heat resistance and ability to produce clean, glossy, flame-polished edges.
Is cast acrylic more expensive than extruded acrylic?
Yes, cast acrylic typically costs more than extruded acrylic due to its more involved manufacturing process and superior clarity and consistency.
Does Duco Plus sell cast or extruded acrylic?
Duco Plus sells Clear Cast Acrylic Sheet in 1/8" and 1/4" thickness, chosen for its clarity and fabrication quality.
Can extruded acrylic be used for signage?
Extruded acrylic can be used for basic signage, but cast acrylic is generally preferred for signage that will be laser cut, engraved, or viewed up close due to its cleaner edges and better clarity.
Ready to work with premium cast acrylic? Shop Clear Cast Acrylic Sheets at Duco Plus in 1/8" and 1/4" thickness.
