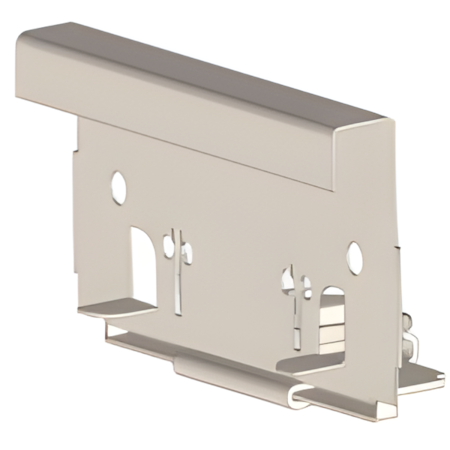

Metal Roofing Panel Clips, Steel Stampings

1-1/2" MECHANICAL LOCK PANEL EXPANSION CLIP (1-PIECE) One-piece expansion style panel clip for 1-1/2in Mechanical Lock standing seam panels (Newtech/Schlebach Quadro, RF VS150); best suited for open purlin applications. 2 hole, 4-3/8" width, 1/2" standoff. SPECIFICATIONS Size: 1-1/2in, 16/22/24/26 ga (Galv Top 22ga/Base 16ga;...

1-1/2" MECHANICAL LOCK PANEL EXPANSION CLIP (2-PIECE, JOB SITE ASSEMBLED) Two-piece job-site-assembled expansion style panel clip for 1-1/2in Mechanical Lock standing seam panels; 7/16" top fits Newtech and Quadro (SS150). Ideal for wood substrates. SPECIFICATIONS Size: 1-1/2in, 5 hole, 5in base width; 24ga base/26ga...

2" MECHANICAL LOCK PANEL EXPANSION CLIP Single lock expansion clip for 2in Mechanical Lock standing seam panels (Newtech 3/4in top or Quadro Pro 5/8in top). 2 hole, 4-3/8" width, 1/2" standoff. SPECIFICATIONS Size: 2in, 16/22/24 ga Material: G90 Galvanized or 304 Stainless Steel Coating/Finish:...

2" NEWTECH MECHANICAL LOCK PANEL EXPANSION CLIP (2-PIECE, WOOD SUBSTRATE) Two-piece expansion clip (top/tab + base) for 2in Newtech Mechanical Lock standing seam panels over wood substrate; field assembly required. SPECIFICATIONS Size: 2in, 18/24/26 ga Material: G90 Galvanized or 304 Stainless Steel Coating/Finish: Galvanized...

2" NEWTECH MECHANICAL LOCK PANEL EXPANSION CLIP - TOP (2-PIECE, WOOD SUBSTRATE) Top component of the two-piece field-assembled expansion clip for 2in Newtech Mechanical Lock standing seam panels over wood substrate; 3/4in top fits Newtech Machines, SSQ200. Pairs with 2" Newtech 2PC Expansion Base...

2" MECHANICAL LOCK PANEL EXPANSION CLIP Single lock expansion clip for 2in Mechanical Lock standing seam panels (Newtech 3/4in top or Quadro Pro 5/8in top). SPECIFICATIONS Size: 2in, 16/22/24 ga Material: G90 Galvanized or 304 Stainless Steel Coating/Finish: Galvanized / Stainless Head: N/A (clip)...

1-1/2" MECHANICAL LOCK FIXED PANEL CLIP Mechanical lock fixed panel clip for 1-1/2in (1-5/8in) Mechanical Lock Standing Seam metal roofing panels; 7/16in top fits RF, NT, KN, EA1300, D150SS machines. 2 hole, 2in width. SPECIFICATIONS Size: 1-5/8in height, 2in width, 24/26 ga Material: G90...

1-1/2" MECHANICAL LOCK HD FIXED PANEL CLIP Heavy-duty mechanical lock fixed panel clip for 1-1/2in (1-5/8in) Mechanical Lock Standing Seam metal roofing panels; 7/16in top fits Z1500, EA1300, KR24, RF, US1505, D150SS machines. 2 or 3 hole, 3in width. SPECIFICATIONS Size: 1-5/8in height, 3in...

1-1/2" MECHANICAL LOCK NFR FIXED PANEL CLIP No-Fastener-Relief mechanical lock fixed panel clip; this 1-1/2in panel clip is 1-1/2in in height (no built-in fastener relief). 7/16in top fits Z1500, KR12, EA1300, US1505, D150SS machines. 2 hole, 2in width. SPECIFICATIONS Size: 1-1/2in height, 2in width,...

1-1/2" MECHANICAL LOCK XHD FIXED PANEL CLIP Extra heavy-duty mechanical lock fixed panel clip for 1-1/2in (1-5/8in) Mechanical Lock Standing Seam metal roofing panels; 7/16in top fits Z1500, EA1300, KR24, RF, US1505, D150SS machines. 4 hole, 6in width. SPECIFICATIONS Size: 1-5/8in height, 6in width,...

1" MECHANICAL LOCK FIXED PANEL CLIP Mechanical lock fixed panel clip for 1in (1-1/8in) Mechanical Lock Standing Seam metal roofing panels; 7/16in top fits RF, NT, KN, D100SS, EA1301 machines. 2 hole, 2in width. SPECIFICATIONS Size: 1-1/8in height, 2in width, 24/26 ga Material: G90...

2" NEWTECH MECHANICAL LOCK FIXED PANEL CLIP Mechanical lock fixed panel clip for 2in (2-1/8in) Newtech Mechanical Lock Standing Seam metal roofing panels; 3/4in top fits RF, NT Ultraseam, Knudson, E machines. 3 hole, 3in width. SPECIFICATIONS Size: 2-1/8in height, 3in width, 24 ga...

1-1/2"/1-1/4" SNAPLOCK NEWTECH 450HD CLIP No fastener relief dimples and flat tongue. Fits 450, Plusmax, D450, SOP15 Snaplock panel systems. SPECIFICATIONS Size: 24 ga, 3 hole, 3in width Material: G90 Galvanized or 304 Stainless Steel Coating/Finish: Galvanized / Stainless Head: N/A (clip) Drive: N/A...

1-1/2" SNAPLOCK 450SL HD CLIP (1-1/4") Heavy duty Snaplock clip fitting Newtech 450SL and DMC 450SL Snaplock panel systems. SPECIFICATIONS Size: 24 ga, 3 hole, 3in width Material: G90 Galvanized or 304 Stainless Steel Coating/Finish: Galvanized / Stainless Head: N/A (clip) Drive: N/A Point:...

1-1/2" SNAPLOCK ECONO QSL LD CLIP Econo Snaplock clip fitting Quadro 1-1/2in Snaplock Panels (E1500). SPECIFICATIONS Size: 20 ga, 3 hole, 2-1/4in width Material: 20ga Galvanized or 304 Stainless Steel Coating/Finish: Galvanized / Stainless Head: N/A (clip) Drive: N/A Point: N/A Mechanical: Meets FBC...

1-1/2" SNAPLOCK NT550 HD CLIP Heavy duty Snaplock clip fitting Newtech 550 and D550S Snaplock panel systems. SPECIFICATIONS Size: 20 ga, 2 hole, 3-1/2in width Material: 20ga Galvanized or 304 Stainless Steel Coating/Finish: Galvanized / Stainless Head: N/A (clip) Drive: N/A Point: N/A Mechanical:...

1-1/2" SNAPLOCK ULTRA LENGTH QSL HD CLIP Heavy duty Snaplock clip fitting 1-1/2in Snaplock Panels; fits Quadro, E1500. SPECIFICATIONS Size: 18 ga, 2 hole, 3-1/2in width Material: 18ga Galvanized or 304 Stainless Steel Coating/Finish: Galvanized / Stainless Head: N/A (clip) Drive: N/A Point: N/A...

UTILITY SNAPLOCK PANEL CLIP Utility Snaplock panel clip for 1-1/4in and 1-1/2in Utility Snaplock metal roofing panels to wood or steel substrates. SPECIFICATIONS Size: 1-1/4in / 1-1/2in, 24 ga Material: 24GA G90 Galvanized or 304 Stainless Steel Coating/Finish: Galvanized / Stainless Head: N/A (clip)...

1-3/4" LD SNAP LOCK PANEL ECONO CLIP Econo clip for 1-3/4in Snaplock panels (Quadro QSL, US175, Newtech 675, CSDP175, Knudson KR-20, ES2000, DDMC175 and more). SPECIFICATIONS Size: 1.875in height x 2.25in width, 18 ga Material: G90 0.0428-0.0566in Galvanized or 304 Stainless Steel Coating/Finish: Galvanized...

1-3/4" SNAPLOCK ULTRA LENGTH HD CLIP Heavy duty clip for 1-3/4in Snaplock panels, multiple versions to fit Quadro, RF, Newtech 675, D175S Knudson, US175. SPECIFICATIONS Size: 18 ga, 2 hole, 3-1/2in width, height 1.88in Material: 18ga Galvanized or 304 Stainless Steel Coating/Finish: Galvanized /...
