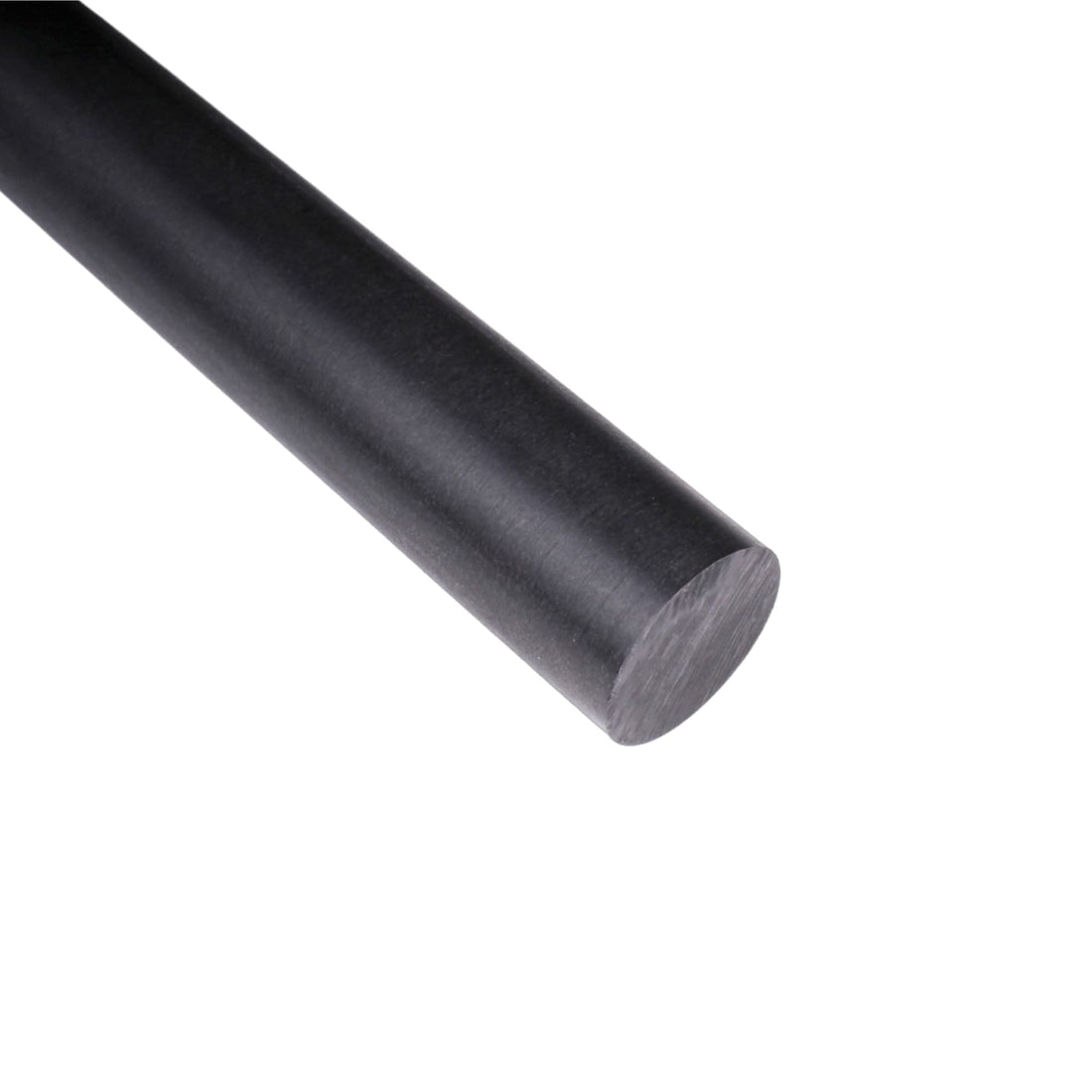

Acetal copolymer, often called by the trade name Delrin, has earned its spot on the shop shelf because it machines cleanly and holds a tolerance better than most plastics. Duco's black acetal copolymer rod is a common pick for bushings, gears, and other wear parts where dimensional stability matters as much as low friction. Getting a clean, accurate finish out of it comes down to a handful of habits around tooling, speed, and heat.

Why Acetal Machines Well

Acetal cuts more like a soft metal than a typical plastic. It doesn't gum up on the tool the way some softer plastics do, and it holds tight tolerances because it doesn't flex or deform much under normal cutting forces. That combination of low friction, good dimensional stability, and solid machinability is exactly why it shows up so often in gears, bushings, bearings, and other close-tolerance mechanical parts rather than in optical or display applications.

Tooling and Speed

Sharp tooling matters more with acetal than you might expect. A dull bit or blade generates extra friction and heat, and heat is the main thing working against you with this material. High-speed steel or carbide tooling with a sharp edge and proper rake angle cuts cleanly and keeps heat down. Run moderate speeds rather than pushing for maximum RPM, since excess speed is one of the fastest ways to build up heat at the cutting edge.

Managing Heat Buildup

Acetal has a relatively low melting point for a machined material, so heat buildup is the main failure mode to watch for. If you see melted or gummy chips instead of clean curls or chips, that's a sign speed or feed needs to come down. Light cutting fluid or compressed air to clear chips and carry away heat helps on longer cuts. Letting chips clear rather than let them re-cut is important too, since re-cutting hot chips adds even more heat right at the tool.

Clamping Without Distortion

Acetal is rigid enough to hold shape under normal handling, but overtightening a chuck or vise can still distort a part enough to throw off a tight tolerance once it's released. Use just enough clamping pressure to hold the part securely, and when precision matters, check the part dimensions after it's unclamped, not just while it's still under pressure. For thin-walled or slender turned parts, a steady rest or support can prevent flex during the cut.

Acetal vs. Acrylic Rod for Machined Parts

It's worth being clear about where each material fits. Acrylic rod is the better choice when the finished part needs to be clear or when light transmission matters, like light rods or display pieces, but it's more brittle and less forgiving under mechanical stress or repeated motion. Acetal is the one to reach for when the part needs to move, wear, or bear load, think gears, bushings, slides, or anything that will see repeated friction or mechanical stress over time. If you need to see through it, use acrylic. If it needs to hold up under motion and wear, use acetal.

Finishing Tips

Acetal doesn't typically need the kind of polishing acrylic does, since most machined parts are functional rather than decorative. A light deburring pass and a fine sanding on any edges that will contact other moving parts is usually enough. If a smoother surface finish is needed for a bearing surface, a finer finishing pass at a slower feed rate, rather than sanding, usually gives the most consistent result.

Real-World Usage Examples

A machine shop producing custom bushings for a conveyor system will turn black acetal rod on a lathe, holding tight tolerances since the part needs to fit a specific bore diameter. A hobbyist machinist building a small gear for a mechanical project will choose acetal over acrylic because the gear teeth need to hold up under repeated engagement without cracking. A maintenance technician replacing a worn wear strip on industrial equipment will often spec acetal for its low friction and resistance to repeated contact.

Frequently Asked Questions

Is acetal the same thing as Delrin?
Delrin is a well-known trade name for acetal homopolymer. Acetal copolymer is a closely related material with similar properties, often used interchangeably in machine shops for general-purpose parts.

Can I use acetal rod for gears?
Yes, it's one of the more common materials for machined plastic gears because of its low friction, wear resistance, and dimensional stability.

Why do my acetal chips look melted instead of curling cleanly?
That usually means too much heat is building up at the cutting edge. Slow the speed or feed, use a sharper tool, and clear chips more frequently.

Does acetal need cutting fluid?
It's not always required, but light cutting fluid or compressed air helps manage heat on longer or deeper cuts, especially on a lathe.

Should I use acetal or acrylic for a structural machined part?
Acetal, if the part needs to handle motion, wear, or mechanical load. Acrylic is better reserved for parts where clarity or appearance is the priority.

Acetal rewards a careful, heat-aware approach at the lathe or mill, and the payoff is a part that holds its tolerance and keeps performing under load. Browse acetal rod options at Duco Plus for your next precision machining project.
