1/8" vs 1/4" Acrylic: How to Pick the Right Thickness
One of the most common questions we hear is how thick acrylic should be for a given project. The 1/8 vs 1/4 acrylic decision comes down to span size, load, and how the panel will be mounted or handled. This acrylic sheet thickness guide walks through when each thickness makes sense so you order the right material the first time.
Quick Comparison
| Factor | 1/8" Acrylic | 1/4" Acrylic |
|---|---|---|
| Rigidity | Lighter, more flexible | Noticeably more rigid and self-supporting |
| Weight | Lightweight, easier to handle and ship | Heavier, adds structural mass |
| Best Span/Size | Smaller panels, framed or supported edges | Larger panels and unsupported spans |
| Typical Uses | Picture framing glazing, small signage, protective covers, craft projects | Shelving, machine guards, display cases, furniture panels, larger signage |
| Cost | Lower cost per sheet | Higher cost per sheet |
| Durability Under Load | Can flex or bow under weight or pressure | Holds shape better under weight and handling |
When 1/8" Acrylic Makes Sense
1/8" acrylic is a great fit for smaller, lighter-duty applications where the panel is fully supported by a frame, edge channel, or backing. Picture framing and small glazing projects are the classic use case. The acrylic is held in place on all sides, so it doesn't need to support its own weight across a span. It also works well for small signage, protective covers over gauges or switches, and craft or hobby projects where you want a lighter, easier-to-cut material.
When 1/4" Acrylic Makes Sense
1/4" acrylic is the better choice any time the panel needs to span a larger distance without sagging, support real weight, or hold up to repeated handling. Shelving is a good example: a shelf that isn't fully supported along its length needs the extra rigidity of 1/4" to avoid bowing. The same logic applies to machine guards, display cases with larger viewing panels, and furniture-grade panels where the acrylic is doing structural work, not just glazing a small frame.
Other Factors to Weigh
Beyond span and load, think about how the piece will be handled. Anything that gets picked up, leaned on, or bumped regularly, like a display case or a protective barrier in a high-traffic area, benefits from the added durability of 1/4". If weight or shipping cost is a bigger concern, or the acrylic will be fully framed and rarely touched, 1/8" keeps the project lighter and more affordable. When in doubt for anything load-bearing or unsupported, sizing up to 1/4" is the safer call.
Real-World Usage Examples
- Picture framing: Framers use 1/8" cast acrylic as a lightweight, shatter-resistant alternative to glass for standard-sized frames.
- Retail shelving: Shops use 1/4" acrylic shelves for merchandise display where the shelf spans between supports without sagging.
- Machine guards: Fabricators choose 1/4" acrylic for equipment guards that need to withstand vibration and occasional contact.
- Small signage and placards: Sign makers use 1/8" acrylic for lightweight desk signs, name plates, and wall placards.
- Display cases: Larger display cases use 1/4" panels for the sides and top to prevent flexing, while smaller cases can get by with 1/8".
Frequently Asked Questions
Is 1/4" acrylic stronger than 1/8"?
Yes, 1/4" acrylic is significantly more rigid and resistant to bowing or flexing than 1/8", making it the better choice for larger or load-bearing panels.
What thickness of acrylic should I use for picture framing?
1/8" acrylic is typically sufficient for picture framing since the panel is fully supported by the frame and doesn't need to span an open area.
Can I use 1/8" acrylic for shelving?
1/8" acrylic can work for very small, fully supported shelves, but for most shelving spans, 1/4" is recommended to prevent sagging under weight.

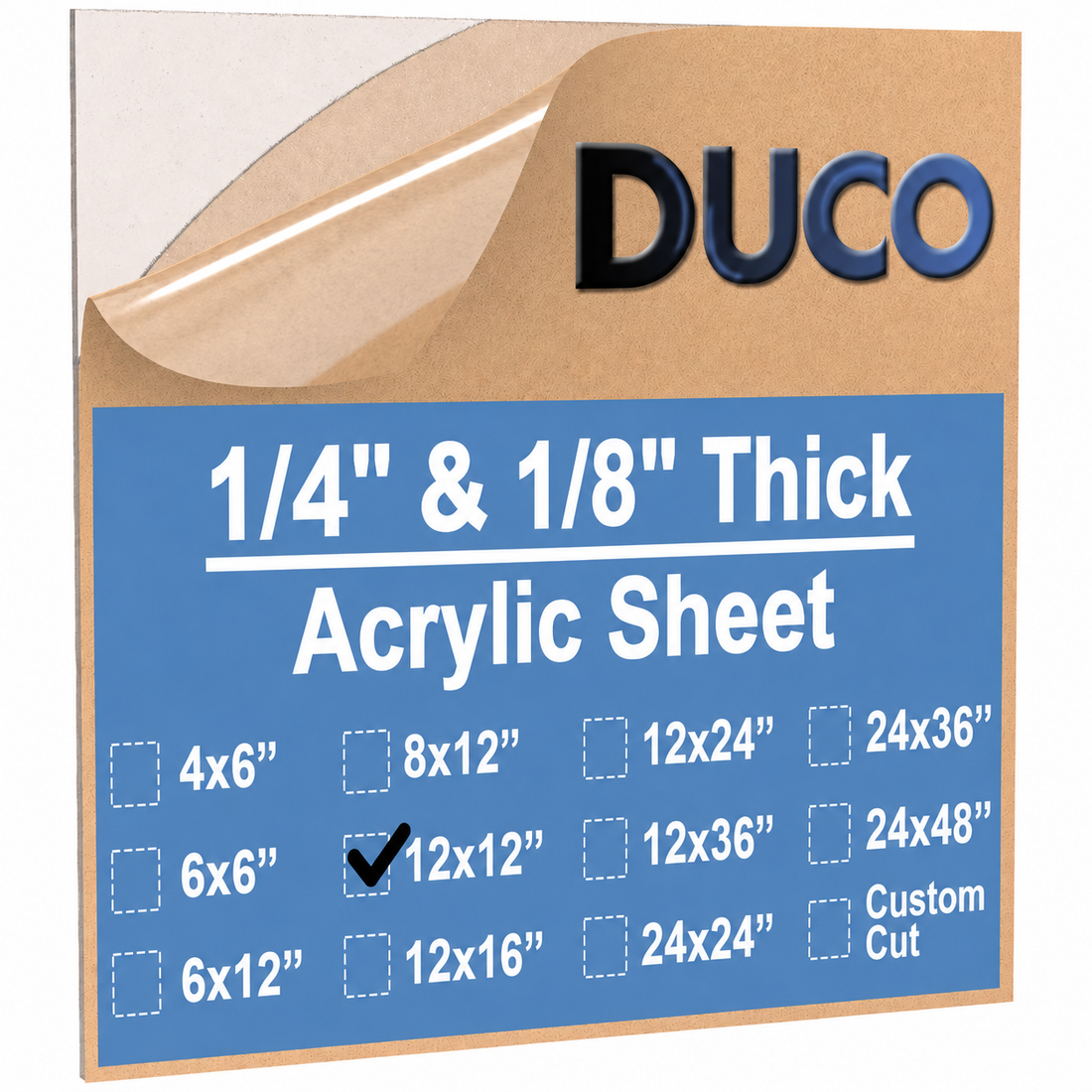

What sizes does Duco Plus offer in 1/8" and 1/4" acrylic?
Duco Plus offers Clear Cast Acrylic in both thicknesses in sizes including 4x6, 6x6, 6x12, 8x12, 12x12, 12x16, 12x24, 24x24, 12x36, 24x36, and 24x48 inches, plus custom cut-to-size options in Clear, Black, and White.
Does thicker acrylic cost more?
Yes, 1/4" acrylic generally costs more per sheet than 1/8" due to the additional material, but the added rigidity and durability are often worth it for larger or structural applications.
Not sure which thickness fits your project? Shop Acrylic Sheets at Duco Plus in 1/8" and 1/4" thickness, including custom cut-to-size options.
