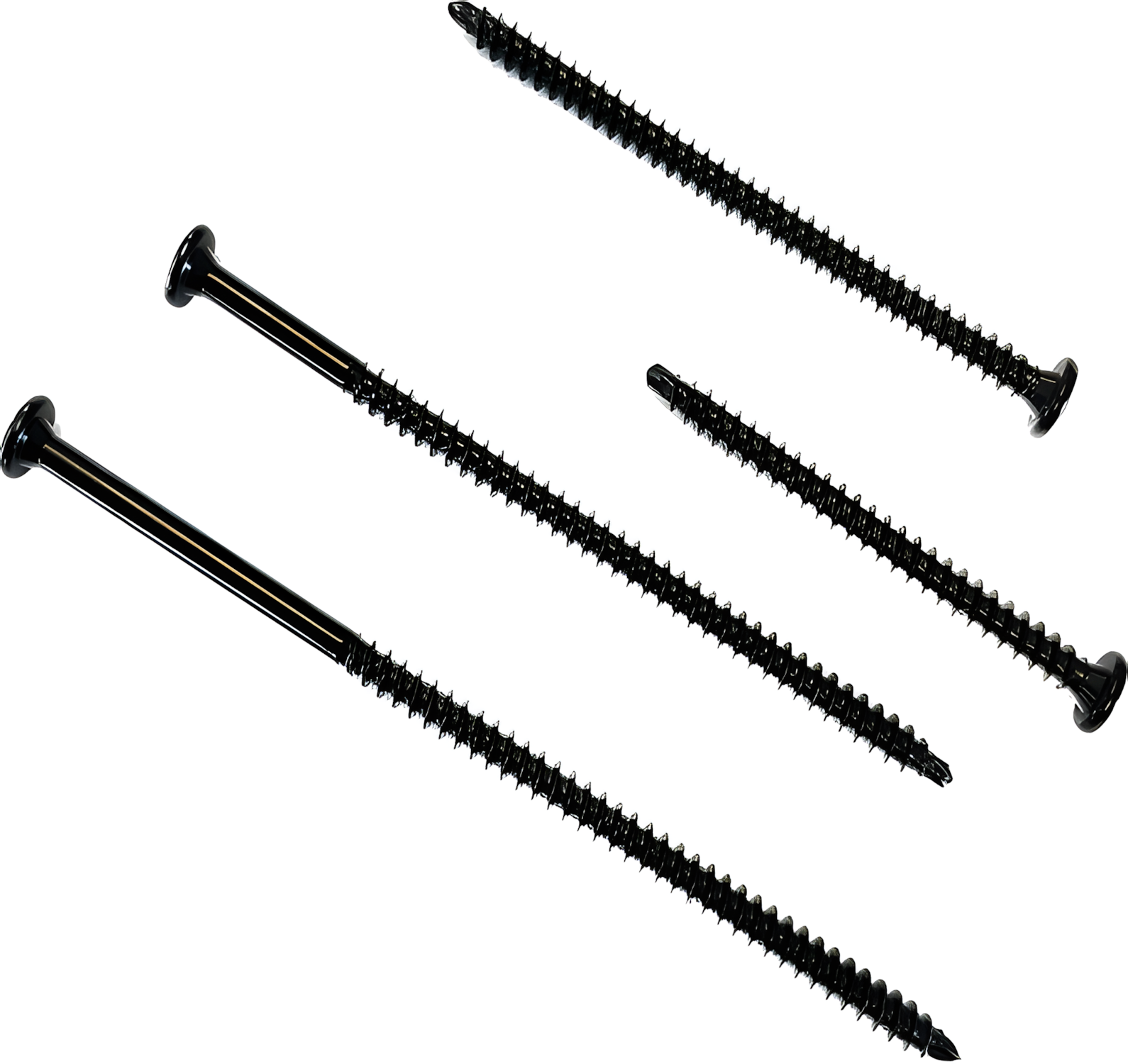

#14-10 Dek*Zip HD Low Slope Fastener - Carbon Steel / 1000hr Black Coating, PH3, SD1 (250 pcs)

DEK*ZIP #14 HD ROOFING FASTENER

Self-drilling fastener for insulation or membrane attachment to wood, concrete and light gauge metal decking; low slope, built-up and commercial roofing; also used as metal roofing panel clip fastener through multi-thickness insulation.

SPECIFICATIONS

• Size: #14 x 2in to #14 x 12in
• Material: C1020 Carbon steel, heat treated for ductility
• Coating/Finish: Black 1000hr epoxy coating, corrosion resistant to FM 4470 / ASTM D6294 / DIN50018 SFW2.0S
• Head: Phillips PH3
• Drive: Phillips #3
• Point: Self Drill #1 (drills/taps metal up to 18ga)
• Dimensions: Truss thread, 10 TPI
• Mechanical: Tensile 3,980 lbs; Shear 2,768 lbs; Torsional 141 in-lbs
• Pull-out: 16ga: 940 lbs (50.0 KSI); 18ga: 453 lbs (33.0 KSI); 22ga: 405 lbs (80.0 KSI); 24ga: 301 lbs (36.5 KSI); 2X SYP Pine: 1647 lbs (1.5in embedment); 1/2in Plywood: 551 lbs
• Application: Wood, concrete, light gauge metal decking
• Approvals: FM 4470; ASTM D6294; DIN50018 SFW2.0S; FBC 1506.6; ASTM B117 1000hrs
• Packaging: 500-1,000/pail
