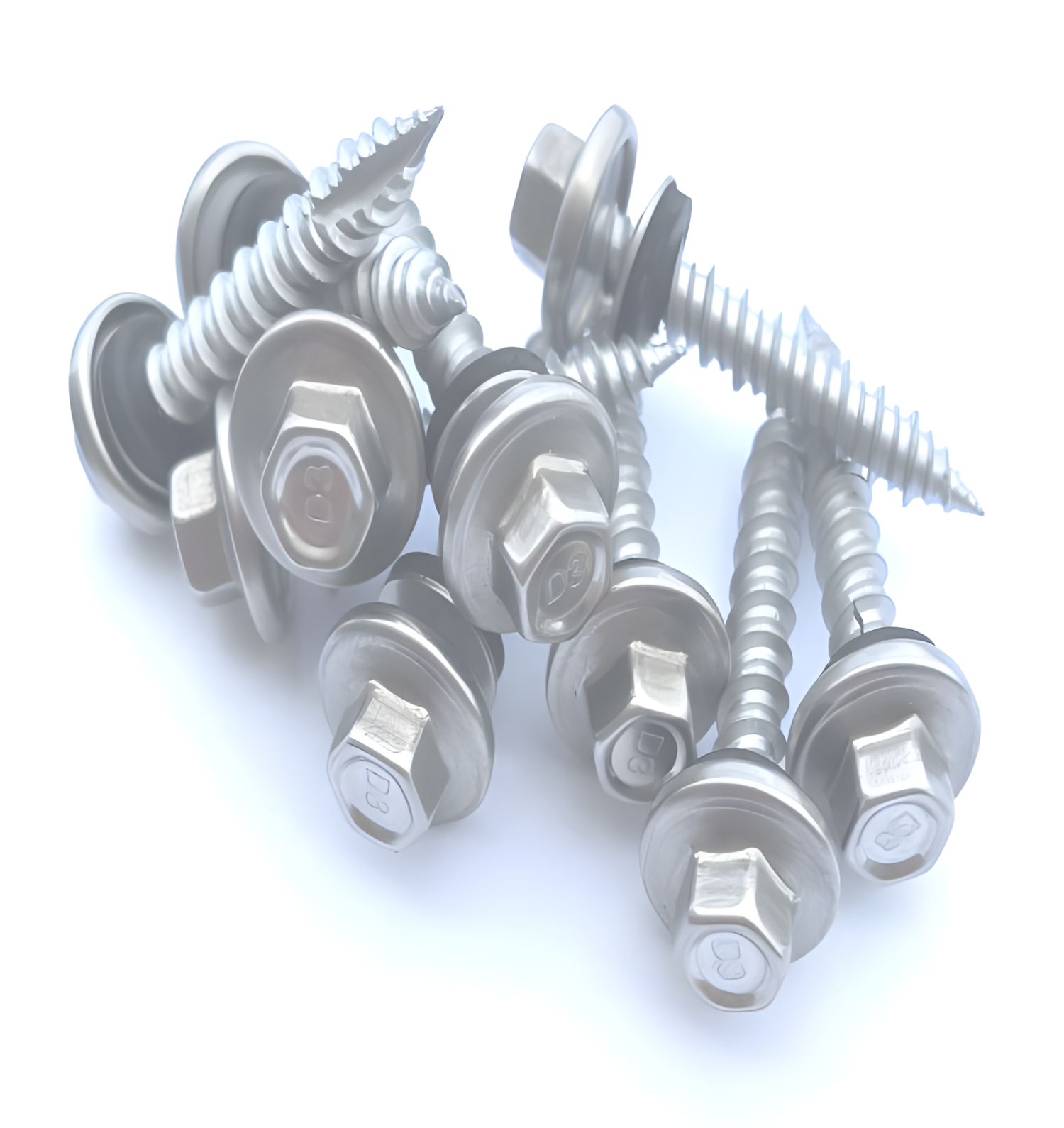

#12 WoodZip SCAMP 5/16" Cap Head - 304SS - 304SS Head / C1022 Body / DMG85 Coating, 5/16" CHWH, TP-17, Silver (250 pcs)

#12 WOODZIP SCAMP 304 STAINLESS STEEL CAP HEAD

Stainless cap head fastener for original installation of 5V Crimp and other metal roofing panels to wood, and replacement of worn #9/#10 metal-to-wood roofing fasteners; also tested for masonry.

SPECIFICATIONS

• Size: #12 x 3/4" to #12 x 4"; also #17 x 1"-1-1/2" and 5/16" x 1"-2"
• Material: 304 Stainless Steel cap head over galvanized/DMG85 coated carbon steel shank
• Coating/Finish: Galvanized + DMG85 shank coating; optional powder-coat paint (~37 standard colors)
• Head: 5/16" cap head (CHWH)
• Drive: 5/16" hex
• Point: TP-17 Hi-Lo
• Dimensions: Outside .221"; Inside shank .158"
• Mechanical: Double shear 4,622 lbs avg
• Pull-out: 3/4" CDX Ply 630/727 lbs (avg/ult); 15/32" CDX Ply 397/425; 7/16" OSB 261/352; 2x4 SYP 471/473; 4000psi concrete 794/971; CMU block 722/841
• Application: Metal panel to wood; metal to concrete (predrill required)
• Approvals: Miami-Dade County Product Listing #L21-0311.02 (renewed L24-0311.02); TAS114 App E / ASTM G85 Annex A5 1000hr; FBC 2017 R904.5.2
• Packaging: Qty/box 2,500 (3/4") down to 750 (4")
• Country of Origin: Taiwan
