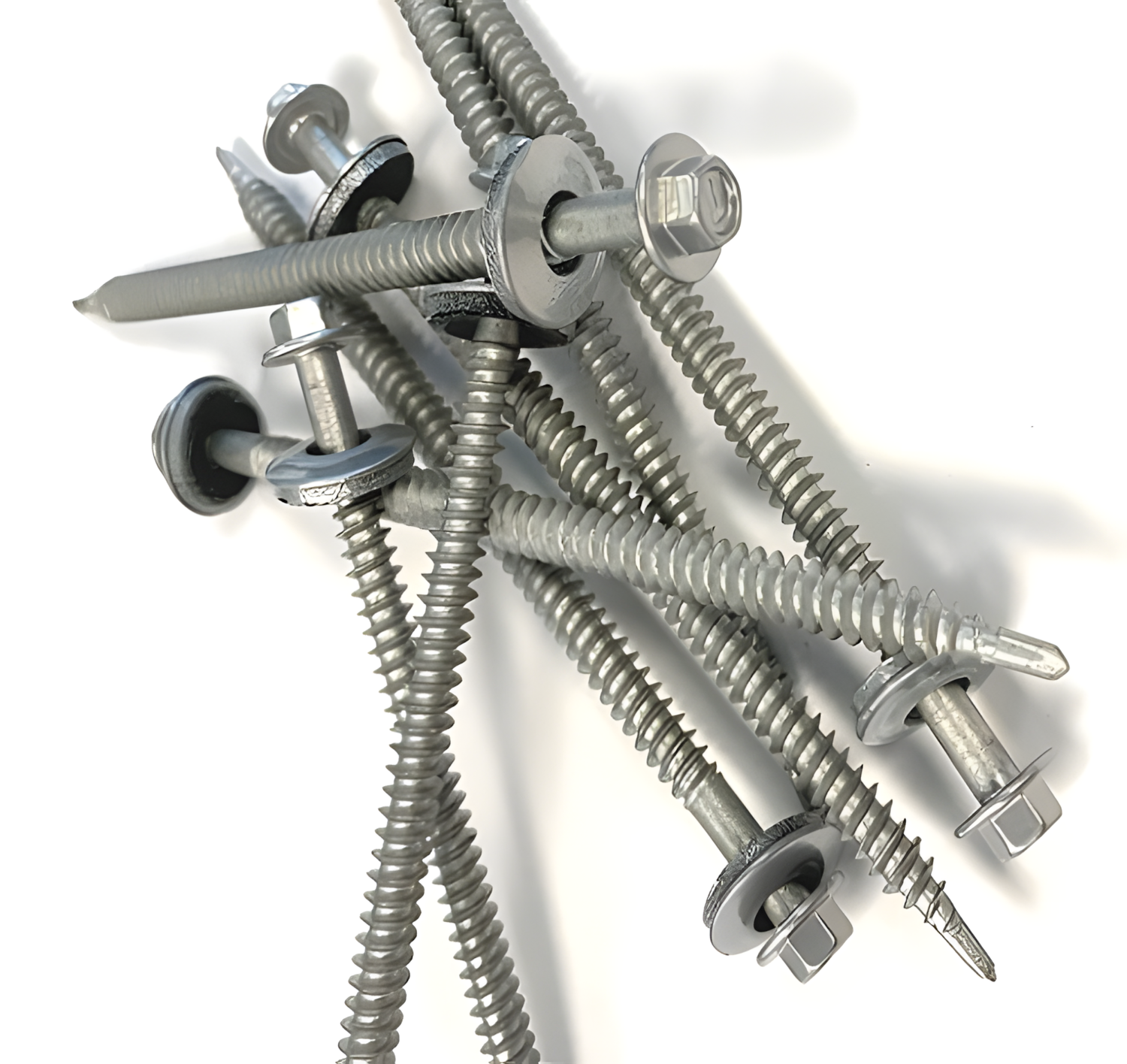

#12 Direct*Seal MP Multi-Purpose Fastener - Carbon Steel / DMG85 Coating, 1/4" HWH, SD1, Silver (200 pcs)
SKU:
DUCO3DSF12034DP1WT-200
- $49.05
- $49.05
- Unit price
- per
Hurry up! Only 500 left
Subtotal:
$49.05
Contact us for Wholesale RFQ 215-942-6274
10 customers are viewing this product
Free Returns
Learn More.
Description
xDIRECT*SEAL MP SCREW #12
Multi-purpose fastener for panel and fixture attachment to wood, masonry, and light gauge metal substrates.
SPECIFICATIONS
- Size: #12 x 3/4" to #12 x 8"
- Material: Steel
- Coating/Finish: DMG85 Silver full corrosion resistant coating
- Head: 1/4" HWH (hex washer head)
- Drive: 1/4" hex
- Point: SD1 (self-drills/taps metal up to 16 ga)
- Dimensions: Maj .235" Min .177"; 13 TPI Buttress; Washer Diameter 0.628"
- Mechanical: Torsional 110 in-lbs
- Pull-out: SPF 1": 475 lbs ult; 3/4" PLY: 421 lbs ult; 22ga steel: 554 lbs avg; 16ga steel: 825 lbs avg; 4000psi concrete: 839 lbs avg; CMU block: 706 lbs avg
- Application: Wood, masonry, light gauge metal up to 16ga
- Corrosion Resistance: ASTM B117 1000 Hour
- Approvals: Florida Building Code Compliant 1506.6
- Packaging: 400/pail 4pail/case (3/4") down to 300/pail (8")
- Country of Origin: Taiwan
