#10 WoodZip SCAMP 1/4" Cap Head - 304SS - 304SS Head / C1022 Body / DMG85 Coating, 1/4" CHWH, TP-17, Silver (250 pcs)

#10 WoodZip SCAMP 1/4" Cap Head - 304SS - 304SS Head / C1022 Body / DMG85 Coating, 1/4" CHWH, TP-17, Silver (250 pcs)

SKU: DUCO4SSC100M-250
$64.87
$64.87
Hurry up! Only 500 left
Subtotal: $64.87

Contact us for Wholesale RFQ 215-942-6274

10 customers are viewing this product

Free Returns

Learn More.
#10 WoodZip SCAMP 1/4" Cap Head - 304SS - 304SS Head / C1022 Body / DMG85 Coating, 1/4" CHWH, TP-17, Silver (250 pcs)

#10 WoodZip SCAMP 1/4" Cap Head - 304SS - 304SS Head / C1022 Body / DMG85 Coating, 1/4" CHWH, TP-17, Silver (250 pcs)

$64.87
#10 WoodZip SCAMP 1/4" Cap Head - 304SS - 304SS Head / C1022 Body / DMG85 Coating, 1/4" CHWH, TP-17, Silver (250 pcs)

#10 WoodZip SCAMP 1/4" Cap Head - 304SS - 304SS Head / C1022 Body / DMG85 Coating, 1/4" CHWH, TP-17, Silver (250 pcs)

$64.87
Size: #10 x 1"
Description
Description
x

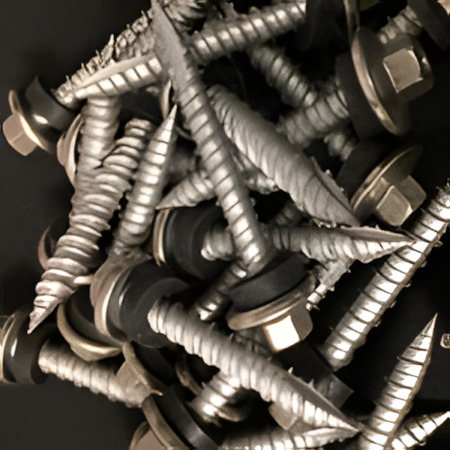

#10 WOODMAC WOODZIP SCAMP 304 STAINLESS CAP HEAD

Provides cut-and-hold performance of WoodZIP fastener with added corrosion protection of a 1/4" drive 304 stainless steel head, over a DMG85 coated carbon steel shank.

SPECIFICATIONS

  • Size: #10 x 1" to #10 x 3-1/2"
  • Material: 304 stainless steel capped head, C1022 carbon steel shank
  • Coating/Finish: Zinc Plate, DMG85 Silver shank; most sizes available painted to complement roofing colors
  • Head: 1/4" CHWH
  • Drive: 1/4" hex (LSC suggested)
  • Point: TP-17 cut point, HILO 15 TPI
  • Dimensions: Thread Diameter Maj .198" Min .142"
  • Mechanical: Torsional 60 in-lbs; Tensile 1,751 lbs min; Shear 1,223 lbs min
  • Pull-out: S. Yellow Pine 2x 753 lbs ult; 3/4" PLY 587 lbs ult; 1/2" PLY 384 lbs ult; 1/2" OSB 198 lbs ult
  • Application: Metal panel to wood
  • Corrosion Resistance: TAS114 Appendix E G85 Annex A5:1000 Hour, ASTM B117 1000 Hour
  • Approvals: Florida Building Code Compliant 1506.6
  • Packaging: 250 pcs/bag; qty/box 2,500 (1") down to 1,000 (3-1/2")
  • Country of Origin: Taiwan
