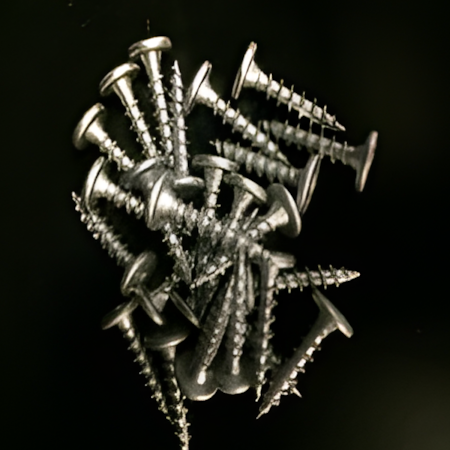

#10 Panclip MTW 1000hr Miami-Dade - Carbon Steel / DMG85 Coating, SQ2, TP-17, Silver (250 pcs)
SKU:
DUCOPD10100T-250
- $36.76
- $36.76
- Unit price
- per
Hurry up! Only 500 left
Subtotal:
$36.76
Contact us for Wholesale RFQ 215-942-6274
10 customers are viewing this product
Free Returns
Learn More.
Description
x#10 PANCLIP MTW 1000HR
Low profile pancake head fastener for wood substrates; DMG85 silver or white coated carbon steel, or 304SS/316SS.
SPECIFICATIONS
- Size: #10 x 1in to #10 x 3in
- Material: C1022 carbon steel, 304 Stainless Steel, or 316 Stainless Steel
- Coating/Finish: DMG85 Silver or White, or Stainless (uncoated)
- Head: Panclip low profile pancake
- Drive: SQ2
- Point: TP-17
- Dimensions: 9 TPI; Maj .185in Min .201in; Head Ht .060-.07in; Head Dia .435-.472in
- Mechanical: Torsional 66 in-lbs; Tensile 1,981 lbs min; Shear 1,428 lbs min
- Pull-out: S. Yellow Pine 944 lbs ult; 3/4in PLY 665 lbs ult; 1/2in PLY 387 lbs ult; 7/16in OSB 192 lbs ult
- Application: Wood
- Corrosion Resistance: TAS114 Appendix E G85 Annex A5:1000 Hour, ASTM B117 1000 Hour
- Approvals: Miami-Dade L21-0630.02 (silver), L20-0309.02 (SS); FBC 1506.6
- Packaging: 250 pcs/bag, box qty 1,500-5,000
- Country of Origin: Taiwan
