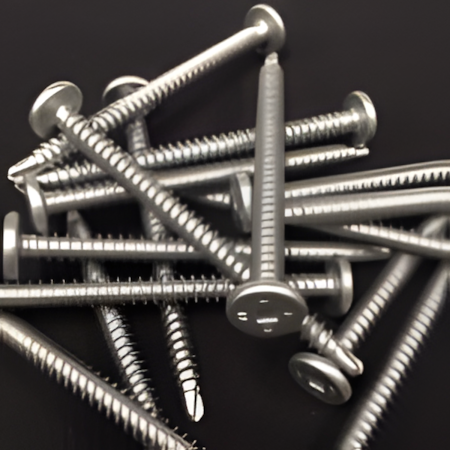

Panclip SDL Long Length - 410SS - 410 Stainless Steel / DMG85 Coating, SQ2 Pancake, SD1, Silver

Panclip-SD-L Long Length Pancake Head. #14-13 low profile head fastener for high strength applications in long lengths: panel clip, commercial roofing stress plate, plywood, nailboard, fixture attachment; installs into wood, light gauge metal up to 16ga, and masonry/concrete with 3/16in pre-drill Size: #14 x 1-1/2in to #14 x 10in. Material: C1022 carbon steel or 410 Stainless Steel. Coating/Finish: DMG85 Black or Silver (SS). Head: Panclip low profile pancake. Drive: SQ2. Point: SD1. Dimensions: 13 TPI, Buttress; Maj .238in Min .166in; Head Ht .060-.07in; Head Dia .49-.51in. Mechanical: Torsional 110 in-lbs. Pull-out: 3/4in PLY 630 lbs; 1/2in PLY 423 lbs; 7/16in OSB 333 lbs; 22ga Steel 102ksi 575 lbs, 80ksi 456 lbs; 16ga Steel 1,103 lbs; 4000 PSI Concrete 675 lbs; CMU Block 432 lbs. Application: Wood, Metal Deck, Concrete; metal 22ga up to 16ga. Approvals: FBC 1506.6; Miami-Dade L21-0630.03. Packaging: 500-2,500/box, 100-count sub-packs available. Country of Origin: Taiwan.
