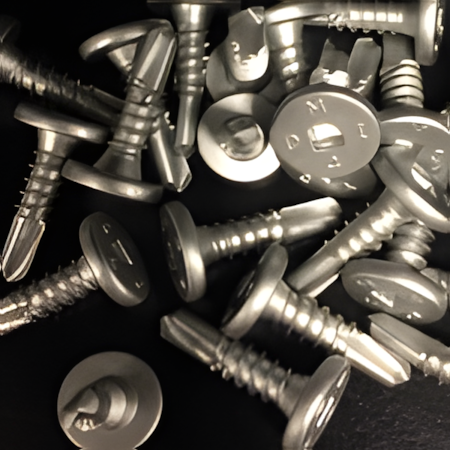

Panclip SD Self Drilling MTM - 410SS Miami-Dade - 410 Stainless Steel / DMG85 Coating, SQ2 Pancake, SD3, Silver

Panclip-SD Self Drilling MTM. Panclip low profile pancake head mated to self drilling drill point for drill and tap performance into metal and steel substrates; DMI4 head marking = 410 Stainless Steel with DMG85 coating Size: #10-16 x 1in to 1/4-20 x 7in. Material: C1022 carbon steel or 410 Stainless Steel. Coating/Finish: DMG85 Silver. Head: Panclip low profile pancake. Drive: SQ2/SQ3. Point: #10 SD2, #12 SD3, #14 SD3/SD4/SD5. Dimensions: #10-16, #12-24 SD3, 1/4-14 SD3, #14-20 SD4; Head Ht #10/#12 .060-.082in, #14 .112-.120in; Head Dia #10/#12 .432-.50in, #14 .490-.51in. Mechanical: Tensile #10 1,900 / #12 2,860 / #14(SD3) 3,610 / #14(SD5) 3,870 lbs; Torsional #10 76 / #12 92 / #14(SD3) 150 / #14(SD5) 150 in-lbs. Pull-out: 12ga: #10 1,400, #12 1,436, #14(SD3) 1,290, #14(SD5) 1,817 lbs; 14ga: #10 860, #12 887, #14(SD3) 1,113 lbs; 16ga: #10 579, #12 680, #14(SD3) 484 lbs; 18ga: #10 423, #14(SD3) 390 lbs; 22ga: #10 216, #12 228, #14(SD3) 263 lbs. Application: Steel .036in-.210in (SD2/SD3); Steel 0.12in-0.25in (SD4). Approvals: FBC 1506.6; Miami-Dade L20-0309.01, L21-0630.03. Packaging: 250-5,000/box. Country of Origin: C1022 Taiwan, 410SS China.
