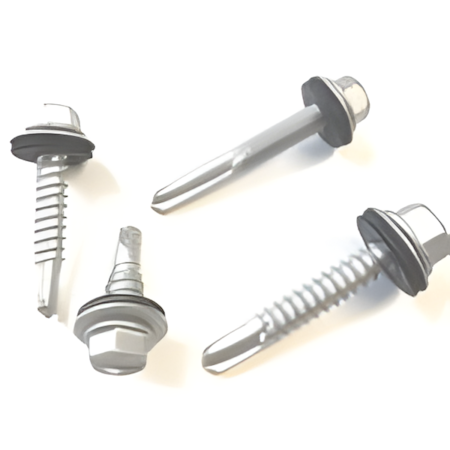

HWH SteelZip FLMD Self Drill MTM - Carbon Steel / DMG85 Coating, 5/16" HWH, SD1/SD3/SD5, Silver (250 pcs)

HWH STEELZIP FLMD SELF DRILL - MTM

Precision self drilling point for metal to metal fastening of metal panels to steel substrates. HWH bonded washer head style. Galvanized electro plating plus DMG85 Silver full fastener coating gives corrosion protection. G90 galvanized and EPDM washers assembled for a positive seal against metal panels.

SPECIFICATIONS

• Size: #12 x 3/4" to #12 x 3" (SD3); #14 x 1-1/2" (SD3, LW); #14 x 7/8" (SD1, stitch lap); #12 x 1-1/2" (SD5)
• Material: C1022
• Coating/Finish: Zinc Plate, DMG85 Silver; G90 Bonded EPDM washer
• Head: 5/16" HWH
• Drive: 5/16" Hex
• Point: SD3 (or SD5 for #12-24, SD1 for #14x7/8")
• Dimensions: #12-14 SD3: 14 TPI, Maj .212" Min .155"; #12-24 SD5: 24 TPI, Maj .212" Min .192"
• Mechanical: SD3: Torsional 92 in-lbs, Shear 2,080 lbs avg, Tensile 2,900 lbs avg; SD5: Torsional 100 in-lbs, Shear 2,200 lbs avg, Tensile 3,200 lbs avg
• Pull-out: SD3: 12ga 1,540 lbs, 14ga 920 lbs, 16ga 680 lbs; SD5: 12ga 1,300 lbs, 3/16" 3,200 lbs, 1/4" 3,200 lbs
• Application: Steel 0.059"-0.210" (SD3); Steel 0.210"-0.500" (SD5)
• Approvals: Florida Building Code Compliant 1506.6
• Packaging: 250 pcs/bag
• Country of Origin: Taiwan
