Galvalume Stress / Membrane Plate - AZ50 Galvalume Steel, Round Plate (250 pcs)

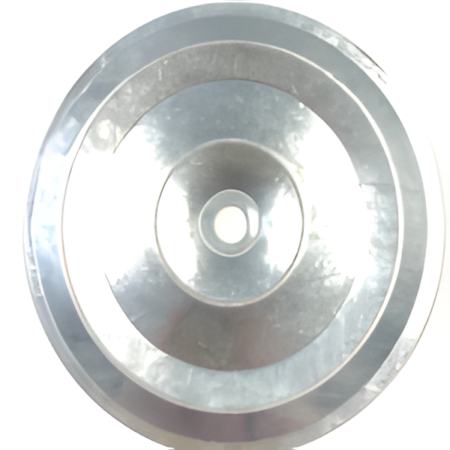

DEK*ZIP GALVALUME STRESS / MEMBRANE SEAM PLATE

Round steel DEK-ZIP stress and membrane seam plates distributing clamping force of commercial roofing fasteners; popular for insulation board, coverboard, and single ply/modified bituminous membrane attachment to steel, wood, or masonry roof decks. 3" plate has multiple ribs for holding rigid insulation/ISO boards; 2-3/8" membrane plate has multi-rib design with barbs and a recessed fastener hole for low profile installation.

SPECIFICATIONS

• Size: 3" round (stress plate); 2-3/8" round (membrane seam plate)
• Material: AZ50 Galvalume Steel
• Coating/Finish: Galvalume
• Head: N/A (plate)
• Drive: N/A
• Point: N/A
• Dimensions: 3" stress plate: OD 3.00in, ID 0.268in, thickness 0.019in; 2-3/8" membrane plate: OD 2.375in, thickness 0.038in
• Mechanical: Material Spec SAE J1392; Pull Over Values (Ult) - 3" stress plate: #14 Dekzip 482 lbs, #14 Panclip SD-L 749 lbs; 2-3/8" membrane plate: #14 Dekzip 1,397 lbs, #14 Panclip SD-L 1,942 lbs
• Application: Steel, wood, or masonry roof decks; compatible with #12 Dekfast, #14/#15 DEK*ZIP, #14/#15 Dekfast, 1/4" Dekfast Spike, TPR Peel Rivet, #12-24 Purlin fasteners, #10/#12/#14 Panclip SDL and Panclip SD
• Packaging: 500-1,000/pail
