#10 WoodZip FLMD Metal to Wood Screw - Carbon Steel / DMG85 Coating, 1/4" HWH, TP-17, Silver (250 pcs)
SKU:
DUCO4H100-250
- $43.30
- $43.30
- Unit price
- per
Hurry up! Only 500 left
Subtotal:
$43.30
Contact us for Wholesale RFQ 215-942-6274
10 customers are viewing this product
Free Returns
Learn More.
Description

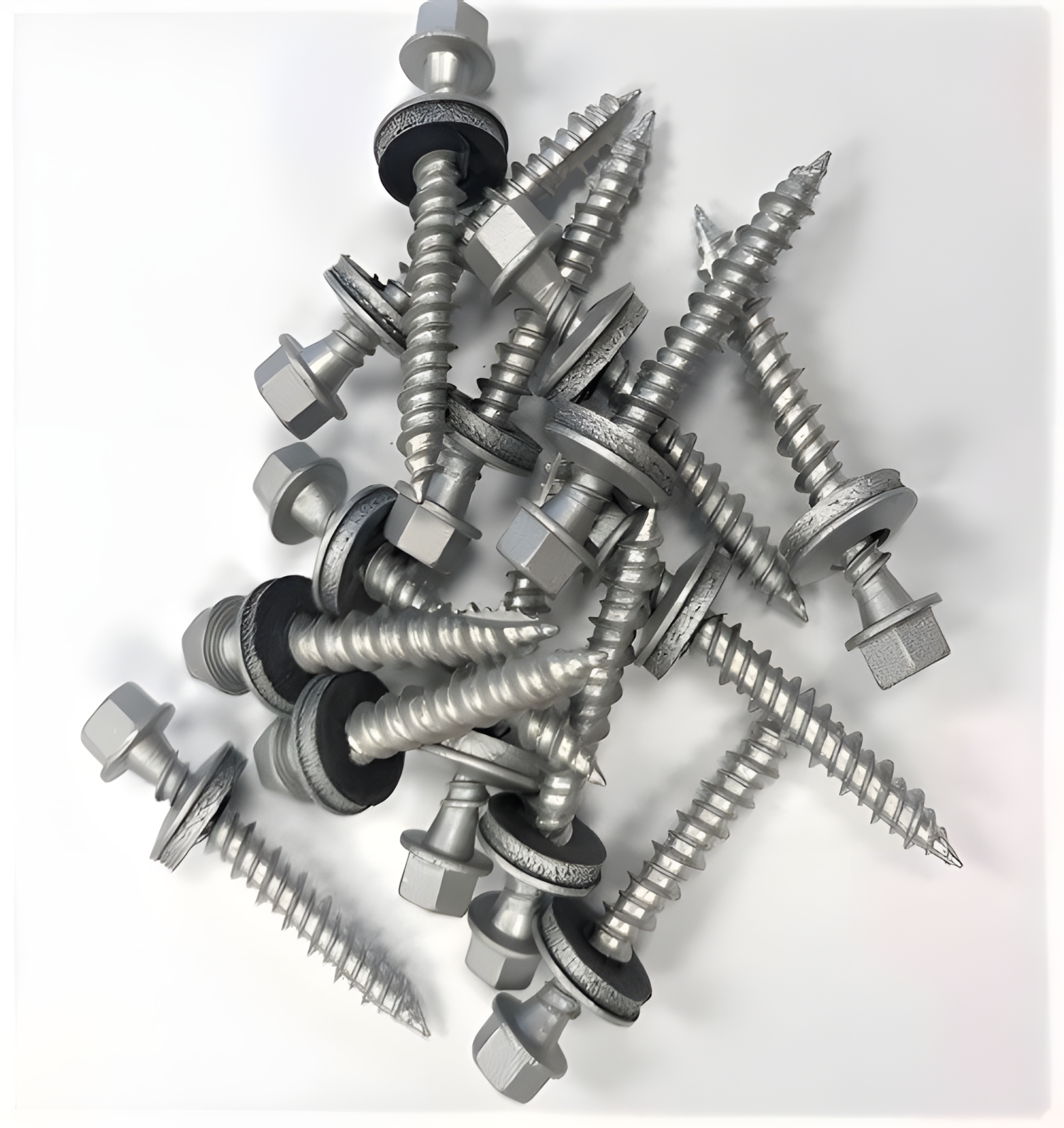

xWOODZIP #10 / #14 METAL TO WOOD SCREW
Metal to wood screw for installation of metal roofing and sidewall panels into wood substrates. Vulcanized bonded EPDM washer for positive seal against steel panels; TP-17 slotted cut point reduces driving torque.
SPECIFICATIONS
- Size: #10 x 1" to #10 x 3"; #14 x 1" to #14 x 2"
- Material: C1022
- Coating/Finish: Zinc Plate, DMG85 Silver (Miami-Dade L21-0630.06)
- Head: 1/4" HWH (#10), 5/16" CHWH (#14)
- Drive: 1/4" HWH, 5/16 CHWH (#14)
- Point: TP-17
- Dimensions: Maj: .193" Min: .131"; Washer Diameter: 0.468"
- Mechanical: Torsional: 60 in-lbs; Tensile: 1,530 lbs min; Shear: 1,298 lbs min
- Pull-out: S. Yellow Pine 810 lbs ult; 3/4" PLY 665 lbs ult / 571 Avg; 1/2" PLY 429 lbs ult / 412 Ult; 1/2" OSB 223 lbs ult
- Application: Wood
- Corrosion Resistance: Woodzip FLMD: TAS114 Appendix E G85 Annex A5:1000 Hour, ASTM B117 1000 Hour
- Approvals: Florida Building Code Compliant 1506.6; Miami-Dade County # L21-0630.06 (FLMD variant)
- Packaging: 250 count bags
- Country of Origin: China, Taiwan (FLMD)
